Power BI Admin Export to SQL Server

PowerShell 5.1 pipeline that collects Power BI tenant metadata and activity events, then loads reporting-facing SQL Server targets under REPORTINGSERVICES.PBI.

Overview

Automates tenant-level admin extraction for groups, reports, apps, datasets, capacities, and activity events with SQL persistence and controlled final processing.

Business Purpose

Provide reliable admin telemetry and user-access datasets for governance, compliance, and operational reporting in a scheduler-safe daily job pattern.

Technology Stack

PowerShell 5.1 (64-bit)MicrosoftPowerBIMgmtSqlServer ModulePSLoggerSecretStoreSQL Server

Authentication Model

Service principal authentication via Connect-PowerBIServiceAccount with CLIENTID, CLIENTSECRET, and TENANTID resolved from SecretStore.

Pipeline Phases

  1. Local module bootstrap and logging setup.
  2. SecretStore load and Power BI sign-in.
  3. Activity gap detection and day-by-day backfill to yesterday.
  4. Conditional full admin refresh block when a date gap exists.
  5. Incremental ReportUsers, GroupUsers, and DatasetUsers refresh on every execution.
  6. Power BI disconnect, SQL final processing call, and exit code handling.

Key Runtime Behaviors

  • Compares max REPORTINGSERVICES.PBI.ActivityEvents date to yesterday and backfills missing days using Get-PowerBIActivityEvent windows from 00:00:00 to 23:59:59.
  • Full admin entity refresh (Reports, Groups, Apps, Datasets, Refresh, Capacity, AppUsers) only executes when an activity gap is detected.
  • User access entities (ReportUsers, GroupUsers, DatasetUsers) refresh on every execution with entity-level delete and reinsert behavior.
  • Paged admin endpoints use top = 5000 with skip iteration; capacities endpoint is non-paged.
  • Dry-run mode performs SQL reads and API calls but skips write actions, including DELETE, TRUNCATE, EXEC, INSERT, and bulk copy operations.
  • HTTP 429 throttling is treated as handled scheduler failure and exits with code 429 instead of generic error failure.

Primary SQL Objects

ActivityEvents Folders_Staging Apps Reports Datasets RefreshSchedule_Staging Capacities AppUsers ReportUsers FolderUsers DatasetUsers

Final processing command: EXEC REPORTINGSERVICES.PBI.SP_PROCESSPBI.

Operational Scope and Controls

  • Requires SecretStore keys for ConnectionStrings, AZURE_AD_APP:CLIENTID, AZURE_AD_APP:CLIENTSECRET, and AZURE_AD_APP:TENANTID.
  • Includes hard-coded CapacityFilter scope with two capacity GUIDs for selected user refresh queries.
  • Intended daily execution timing is shortly after midnight to ensure prior-day activity completeness.
  • ASCII-only script guidance is retained for PowerShell 5.1 compatibility in Windows Server environments.

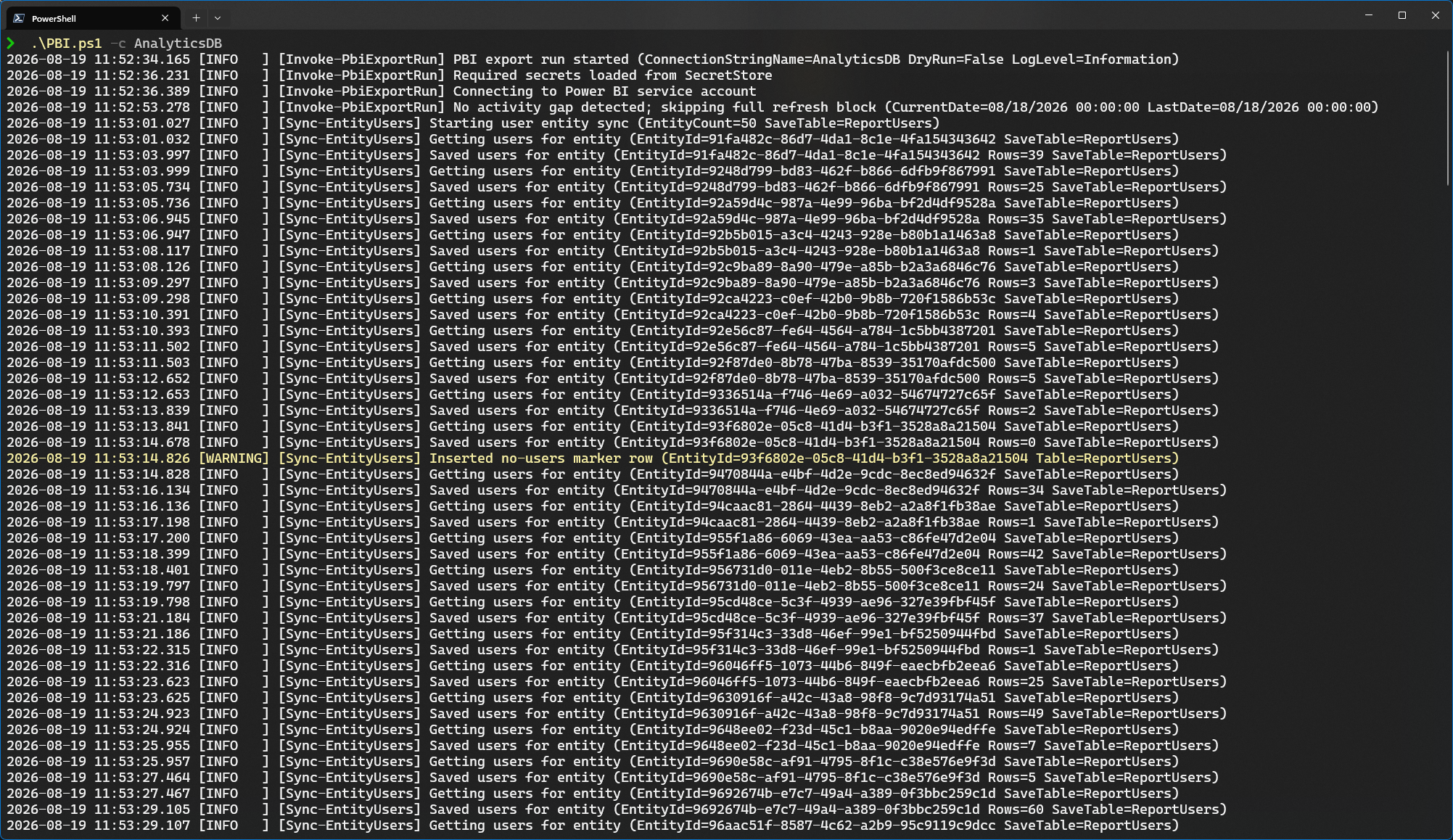

Power BI admin export screenshot one from a PowerShell API run showing SQL-backed governance and usage reporting output
First screenshot from a PowerShell API export run, showing governance output in the reporting layer.

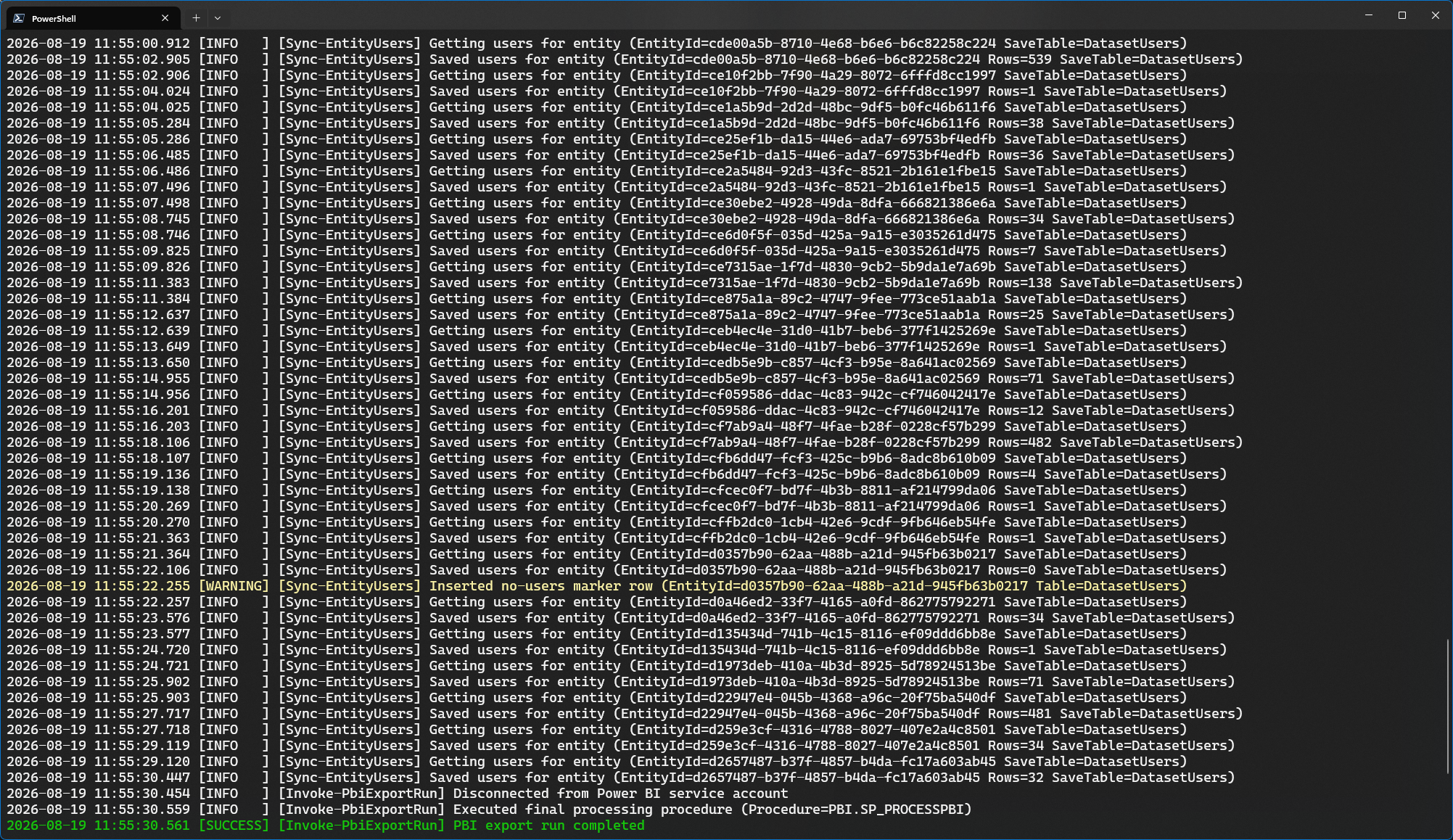

Power BI admin export screenshot two from a PowerShell API run showing tenant metadata and activity-driven report views
Second screenshot from a PowerShell API export run, showing metadata and activity reporting views.

Execution Examples

.\PBI.ps1 -ConnectionStringName AnalyticsSQL

.\PBI.ps1 -ConnectionStringName AnalyticsSQL -DryRun

.\PBI.ps1 -ConnectionStringName AnalyticsSQL -LogLevel Information
